Plated, Painted or Natural
04/06/09 at 09:35:56

I did a big search on Moparts, looking to find more info on how each part is finished. As I will be restoring all components in the next couple of months, I 'd like to have a list of all these parts and how they are finished. Also, what flatness of black on each painted part.

Since I'm out here in the country, I still only have Dial-up access, so waiting for pics is painful at times.
I'd like to just have a running list that I could print off and staple on my wall in the shop.

I'll begin and please just add to the list (or correct):

Front backing plates............
Rear backing plates.............
Dana housing.....................
Lower control arms..............Cosmoline
Upper control arms..............
Rear springs.......................
Sway bar..........................
Sway bar brackets..............
Sway bar links....................
Shocks..............................Black
Master cylinder...................Natural
Master cylinder cover...........
Master cyl backing plate.......

continue.........

Back to top

Super Bee - WM23M9A270637 4-Speed
Road Runner - RM23M9A246385 4-Speed (949002)

"Yes, I'm a Big Fan of H Wheels on A12 Cars" Smiley

IP Logged

Dave Watt A12 Moderator A12 numbers guy Posts: 1725	Re: Plated, Painted or Natural Reply #1 - 04/06/09 at 09:42:08 Scott, I posted a Plating Guide that was from an article that Frank Badalson did. It was instrumental in all the plating for my car. It is in the Archives section here: http://a12mopar.com/yabb/YaBB.pl?num=1209002197/0#0
Back to top	Gathering A12 fender tag information, fender tag photos, broadcast sheet copies, and window sticker copies for documentation. Confidentiality assured. IP Logged

Dave Watt A12 Moderator A12 numbers guy Posts: 1725	Re: Plated, Painted or Natural Reply #2 - 04/06/09 at 09:45:24 Just for starters, the front and rear backing plates, shock mounts, front leaf spring hangers, transmission crossmember bolts are all Zinc Phosphate. It would be nice to have a checklist or chart for each part though. Maybe that can be another Excel spreadsheet I can do.
Back to top	Gathering A12 fender tag information, fender tag photos, broadcast sheet copies, and window sticker copies for documentation. Confidentiality assured. IP Logged

A12

Full 6 BBL/Six Pack Member

Lift Off Hoods
Forever!

Posts: 1415

Re: Plated, Painted or Natural
Reply #3 - 04/06/09 at 16:30:58

Quote from Dave Watt on 04/06/09 at 09:45:24:

Just for starters, the front and rear backing plates, shock mounts, front leaf spring hangers, transmission crossmember bolts are all Zinc Phosphate.
It would be nice to have a checklist or chart for each part though. Maybe that can be another Excel spreadsheet I can do. Cool

That would be extra nice to have too Smiley

MikeR

Back to top

IP Logged

A12

Full 6 BBL/Six Pack Member

Lift Off Hoods
Forever!

Posts: 1415

Re: Plated, Painted or Natural
Reply #4 - 04/06/09 at 16:36:35

Here's what I "think" they are:

I'll begin and please just add to the list (or correct):

Front backing plates............ Semi-gloss black
Rear backing plates............. Semi-gloss black
Dana housing..................... Semi-gloss black and cast gray 3rd mem.

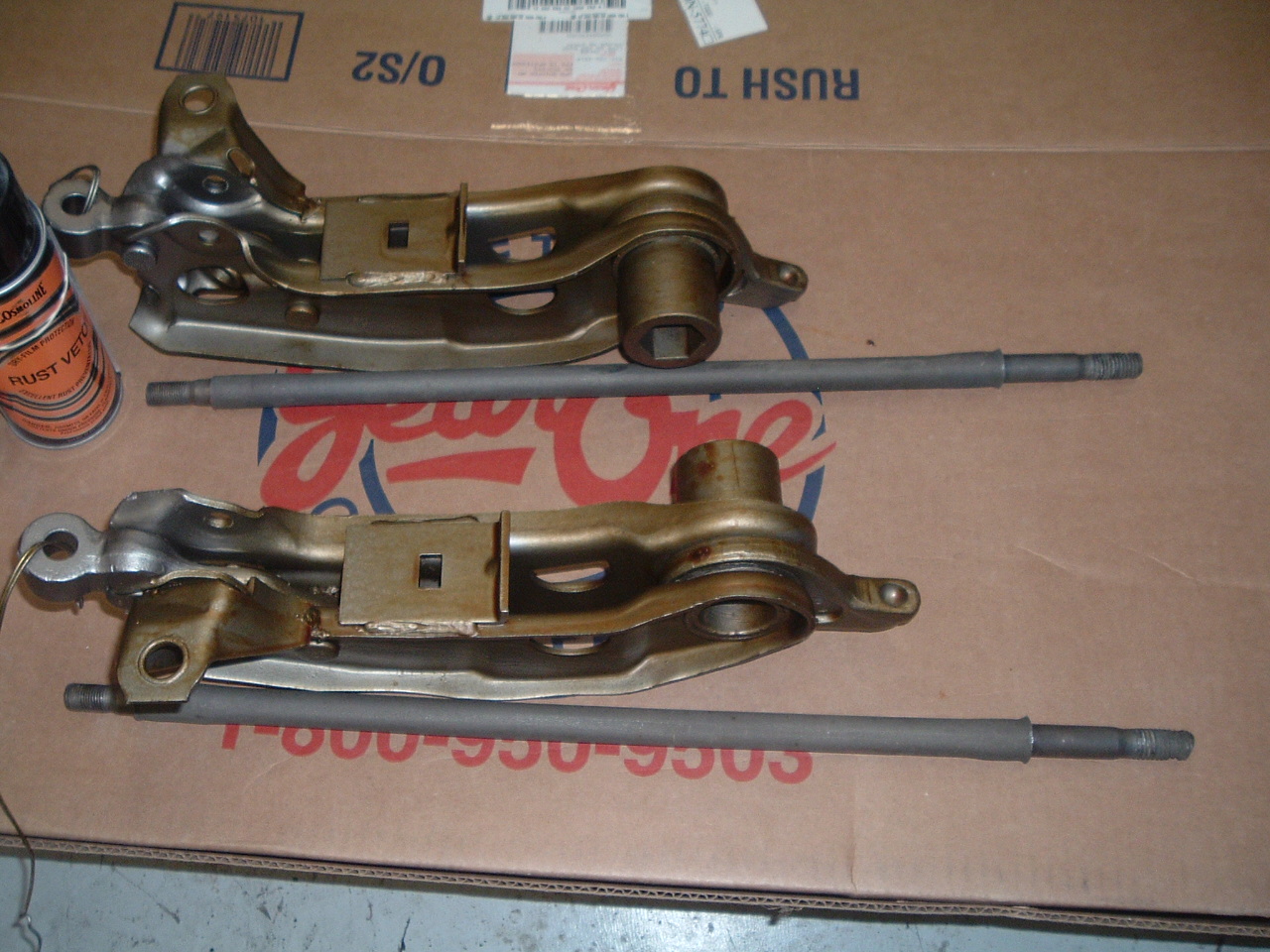

Lower control arms..............Cosmoline
Upper control arms.............. natural or silver'ish
Rear springs....................... cast dark gray
Sway bar.......................... natural/light gray/silver'ish
Sway bar brackets..............
Sway bar links....................
Shocks..............................Black
Master cylinder...................Natural
Master cylinder cover........... gold plating
Master cyl backing plate.......

continue.........

Back to top

IP Logged

chrispy1971gtx

3 BBL/Pack Member

Lift Off Hoods
Forever!

Posts: 125

Re: Plated, Painted or Natural
Reply #5 - 04/06/09 at 21:34:13

Brake back plates are Zinc Phosphate as stated. Not very durable.

Dana Housing is Semi Gloss black apx 33%. DP-90 a very close match.

LCA's, natural, dipped in cosmoline just below the ball joint eye. (at some time, some were dipped in black)

UCA's, natural or sometimes 40% black. (miner were natural)

Springs are natural with latex paint daub marks.

Sway bar was natural, but had a heat treat hue do to the tempering process.

Sway bar brackes were dipped in 33 % black. zinc or clear bolts.

Master cylinder is natural

M/C cover was gold cad, or sometimes silver cad.

M/C clamp/bolt were black phosphate.

M/C back plate was gloss black.

Info taken from "panning for Gold" article done by Roger Gibson in Mopar Action magazine.

Shocks, use Krylon 1613.

Trans cross member was dipped in gloss black as well as torsion bars.

Back to top


IP Logged

RoadrunnerJD

Full 6 BBL/Six Pack Member

Road Runner, Catch
him if you can!

Posts: 594

Re: Plated, Painted or Natural
Reply #6 - 04/06/09 at 21:36:01

Quote from A12 on 04/06/09 at 16:36:35:

Here's what I "think" they are:

I'll begin and please just add to the list (or correct):

Front backing plates............ Zinc phosphate (Eastwood has it in a spray)
Rear backing plates............. Zinc Phosphate
Dana housing..................... Semi-flat black all over (there's no 3rd member)
Lower control arms..............Cosmoline or goldish like the Holley Carbs
Upper control arms.............. natural or silver'ish
Rear springs....................... Natural Black from heat treating or black painted
Rear front spring hangers.... plain steel with undercoating sprayed from outside
Rear shackles.....................natural plain steel
Sway bar.......................... natural/(black heat treated look)
Sway bar brackets.............. Black painted
Sway bar links and bolts..... Zinc phosphate
Shocks..............................Gloss Black
Master cylinder...................Natural cast iron
Master cylinder cover........... yellow gold plated
Master cyl backing plate....... Gloss Black
Engine brackets...................
PS Pump
Spark plug wire separators and brackets
Fan
K-Frame
Torsion Bars
Tie Rod ends
Steering link
Radiator......I like gloss black engine paint but you might want to go with underhood black

continue.........

Mike:

How do you know if the corrections are correct? There are several expert articles ala Roger Gibson in Mopar Action, etc. We could end up with egg on our face here? Let's include photos of everything.

JD

Back to top

IP Logged

chrispy1971gtx

3 BBL/Pack Member

Lift Off Hoods
Forever!

Posts: 125

Re: Plated, Painted or Natural
Reply #7 - 04/06/09 at 21:46:25

Im in the process of having bolts, nuts, latches, etc done. I'm derusting some of the stuff myself, and I sent the part off to Dynamic Restoration for the plating. He's shipped them back, but I havn't got them yet.

here is a link on my suspension de-rusting as well as latches and the products I used.

http://board.moparts.org/ubbthreads/showflat.php?Cat=0&Number=5111631&an =0&page=1#Post5111631

I'll post some pics of the parts when they come in.

Back to top

IP Logged

RoadrunnerJD Full 6 BBL/Six Pack Member Road Runner, Catch him if you can! Posts: 594	Re: Plated, Painted or Natural Reply #8 - 04/06/09 at 21:57:46 Rear could also be painted with Eastwood underhood black (I like it because it's glossy but not too glossy). I think that's what I used on mine. Pits are optional... but axle tubes probably should be smooth.

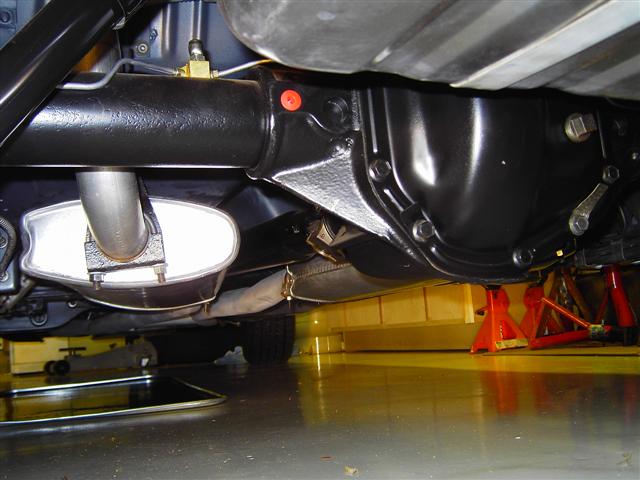

Back to top	Rear_Small_001.JPG IP Logged

RoadrunnerJD Full 6 BBL/Six Pack Member Road Runner, Catch him if you can! Posts: 594	Re: Plated, Painted or Natural Reply #9 - 04/06/09 at 22:03:04 Another Natural (NOS) u-bolts and hardware (you could clear coat with satin clear), painted shock plates and I used Eastwood zinc phosphate to give the springs and backing plates a natural unpainted but blackish look

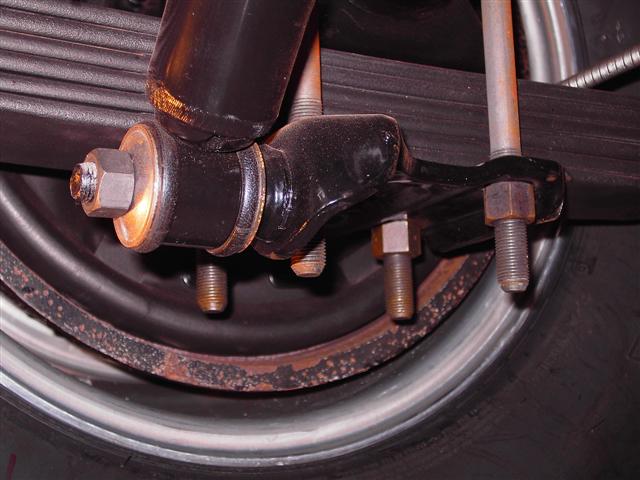

Back to top	Rear_shock_suspension_Small.JPG IP Logged

RoadrunnerJD

Full 6 BBL/Six Pack Member

Road Runner, Catch
him if you can!

Posts: 594

Re: Plated, Painted or Natural
Reply #10 - 04/06/09 at 22:10:21

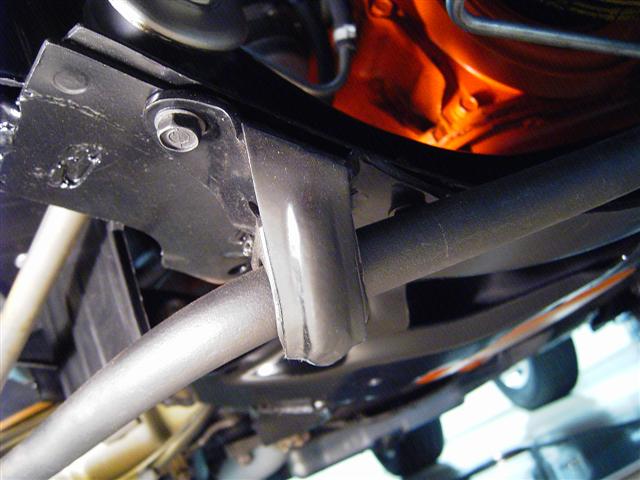

I used Eastwood's zinc phosphate on sway bar too and brackets are powder coated gloss black and attaching bolts and end links were zinc phosphate purchased from Frank Badalson. The strut bushing retainers are silver cad. I did my upper control arms in semi-flat black. Struts are natural steel more silver than blackened. Let's see more photos...anyone?

Back to top


IP Logged

A12_RuNNeR

4 BBL/Pack Member

SuPeRBee.....RuNNeR
Choose Your Weapon

Posts: 198

Re: Plated, Painted or Natural
Reply #11 - 04/07/09 at 21:29:28

Update for today....thanks for the input guys...

Here's what I "think" they are:

I'll begin and please just add to the list (or correct):

Front backing plates............ Zinc phosphate (Eastwood has it in a spray)
Rear backing plates............. Zinc Phosphate
Dana housing..................... Semi-flat black all over (there's no 3rd member)
Lower control arms.............. Cosmoline or goldish like the Holley Carbs
Upper control arms.............. natural or silver'ish
Rear springs....................... Natural Black from heat treating or black painted
Rear front spring hangers...... plain steel with undercoating sprayed from outside
Rear shackles......................natural plain steel
U Bolts & hardware ..............natural
Shock plates.......................black painted
Sway bar.......................... natural/(black heat treated look)
Sway bar brackets.............. Black painted
Sway bar links and bolts.......Zinc phosphate
Front Struts.......................natural steel more silver than blackened
Shocks..............................Gloss Black
Master cylinder...................Natural cast iron
Master cylinder cover........... yellow gold plated
Master cyl backing plate....... Gloss Black
Engine brackets...................
PS Pump............................
Spark plug wire separators and brackets
Fan...................................
K-Frame............................
Brake drums.......................
Emerg. Brake Cables.............
Torsion Bars....................... dipped in gloss black
Trans cross member............ dipped in gloss black
Tie Rod ends......................
Steering link......................
Radiator......I like gloss black engine paint but you might want to go with underhood black

continue.........

Back to top

Super Bee - WM23M9A270637 4-Speed
Road Runner - RM23M9A246385 4-Speed (949002)

"Yes, I'm a Big Fan of H Wheels on A12 Cars" Smiley

IP Logged

RoadrunnerJD

Full 6 BBL/Six Pack Member

Road Runner, Catch
him if you can!

Posts: 594

Re: Plated, Painted or Natural
Reply #12 - 04/07/09 at 23:15:24

Quote from A12_RuNNeR on 04/07/09 at 21:29:28:

Update for today....thanks for the input guys...

Here's what I "think" they are:

I'll begin and please just add to the list (or correct):

Front backing plates............ Zinc phosphate (Eastwood has it in a spray)
Rear backing plates............. Zinc Phosphate
Dana housing..................... Semi-flat black all over (there's no 3rd member)
Lower control arms.............. Cosmoline or goldish like the Holley Carbs
Upper control arms.............. natural or silver'ish
Rear springs....................... Natural Black from heat treating or black painted
Rear front spring hangers...... plain steel with undercoating sprayed from outside
Rear shackles......................natural plain steel
U Bolts & hardware ..............natural
Shock plates.......................black painted
Sway bar.......................... natural/(black heat treated look)
Sway bar brackets.............. Black painted
Sway bar links and bolts.......Zinc phosphate
Front Struts.......................natural steel more silver than blackened
Shocks..............................Gloss Black
Master cylinder...................Natural cast iron
Master cylinder cover........... yellow gold plated
Master cyl backing plate....... Gloss Black
Engine brackets...................
PS Pump............................
Spark plug wire separators and brackets
Fan...................................
K-Frame............................
Brake drums.......................
Emerg. Brake Cables.............
Torsion Bars....................... dipped in gloss black
Trans cross member............ dipped in gloss black
Tie Rod ends......................
Steering link...................... Natural with a turquoise longitudinal inspection drip
Radiator......I like gloss black engine paint but you might want to go with underhood black

continue.........

Back to top

IP Logged

A12_RuNNeR 4 BBL/Pack Member SuPeRBee.....RuNNeR Choose Your Weapon Posts: 198	Re: Plated, Painted or Natural Reply #13 - 04/08/09 at 08:21:38 Rear springs....................... Natural Black from heat treating or black painted Flat or Gloss? but not natural steel?
Back to top	Super Bee - WM23M9A270637 4-Speed Road Runner - RM23M9A246385 4-Speed (949002) "Yes, I'm a Big Fan of H Wheels on A12 Cars" IP Logged

Coop

A12 Moderator

...so when does
government's 'A12
welfare' start?

Posts: 238

Re: Plated, Painted or Natural
Reply #14 - 04/08/09 at 08:45:43

Scott,

From what I was able to gather springs were natural up until 69 when they changed to black (heat treating?). Totally Auto did my springs and they were finished in a black satin (lower sheen then semi gloss but not quite flat).

Also, I have a few detailing, plating and general finishing articles, similar to what JD was referring to. I'm sure Mike R and others have them also from our earlier days. If they need to be posted again, either here on this thread or in the arc-jives, let me know.

BTW, we expect pics of your efforts from time to time. Cool
